Debian @ Lichee RV Dock Test Report

System Version

13

Status

BASIC

Last Update

2025-10-22

Debian 13 D1 Test Report

Test Environment

Operating System Information

  • System Version: Debian
  • sudo debootstrap --arch=riscv64 trixie rootfs http://deb.debian.org/debian

Hardware Information

  • Sipeed Lichee RV Dock
  • Power Adapter
  • A microSD card
  • A USB to UART Debugger

Github Repo you need

Required Package

  • riscv64-linux-gnu-gcc
  • debootstrap
  • Hard Disk tools

Test Criteria

Succeed：

Debian and shell running successfully

Failed:

No output

Expected Results

Debian and shell running successfully

Actual Results

Debian and shell running successfully

Test Conclusion

Running successfully

Specific Steps

OpenSBI

Clone sourcecode from github

git clone https://github.com/riscv-software-src/opensbi.git

Compile

make CROSS_COMPILE=riscv64-linux-gnu- PLATFORM=generic FW_PIC=y -j$(nproc)

The file you just generated is at build/platform/generic/firmware/fw_dynamic.bin

U-Boot

Clone sourcecode from this branch d1-wip

git clone https://github.com/smaeul/u-boot.git -b d1-wip

Configuration and compile

make lichee_rv_dock_defconfig

make CROSS_COMPILE=riscv64-linux-gnu- OPENSBI=../opensbi/build/platform/generic/firmware/fw_dynamic.bin -j$(nproc)

After that you get a u-boot-sunxi-with-spl.bin file

Later you’ll need to copy that on your SD card

Linux Kernel

First you need to copy kernel sourcecode from d1/all branch

Then you get the config file from another repo

git clone https://github.com/smaeul/linux.git -b d1/all

Here you need this  rv dock's `config` file：https://github.com/jamesgraves/licheerv-debian-linux/blob/main/licheerv_linux_defconfig

Configuration and compile

You get this Image file from arch/riscv/boot/Image

make ARCH=riscv licheerv_linux_defconfig

make ARCH=riscv CROSS_COMPILE=riscv64-linux-gnu- KCFLAGS='-fno-asynchronous-unwind-tables -fno-unwind-tables' -j$(nproc)

extlinux.conf

This file contains some vital parameter for booting

You need to modify the rootfs’s location if you need

Label Debian
	LINUX /Image
	APPEND root=/dev/mmcblk0p2 rw rootwait console=ttyS0,115200 earlycon=sbi

rootfs

This part is the guide for building up rootfs

mkdir rootfs

sudo debootstrap --arch=riscv64 trixie rootfs http://deb.debian.org/debian

Then use chroot to do some jobs before actual running the system

sudo chroot rootfs

passwd

apt update

apt install ...

exit

rootfs Image

  1. Build a 1 GB image file
  2. Copy rootfs to this image file
dd if=/dev/zero of=rootfs.img bs=1G count=1

sudo mkfs.ext4 rootfs.img

mkdir rootfs_mount

sudo mount rootfs.img rootfs_mount

sudo cp -rfp rootfs/* rootfs_mount

sudo umount rootfs_mount

rm -r rootfs_mount

sudo e2fsck -f rootfs.img

sudo resize2fs -M rootfs.img

Flashing Image

First of all, you need to know where your SD card at: sudo lsblk

  1. Set up your SD card with sgdisk
sudo sgdisk /dev/sdb -o

sudo sgdisk /dev/sdb --new=1:4096:69631 --change-name=1:boot

sudo sgdisk /dev/sdb --new=2:69632: --change-name=2:rootfs

sudo sgdisk /dev/sdb -p
  1. Put U-Boot on your SD card
sudo mkfs.vfat /dev/sdb1

sudo dd if=./u-boot/u-boot-sunxi-with-spl.bin of=/dev/sdb seek=256

sync
  1. Copy kernel and extlinux.conf to the SD card
sudo mount /dev/sdb1 /mnt

sudo mkdir /mnt/extlinux

sudo cp ./linux/arch/riscv/boot/Image /mnt/

sudo cp ./extlinux.conf /mnt/extlinux/

sync

sudo umount /mnt
  1. Flash rootfs to the card
sudo dd if=./rootfs.img of=/dev/sdb2 bs=4096

sync

Starting Phase

  1. Put SD card on the board
  2. Connect it with your computer(via USB to UART debugger and screen)
  3. Power on

Verify system information

  1. Login with root

then,

  • uname -a
  • cat /etc/os-release
  • cat /proc/cpuinfo

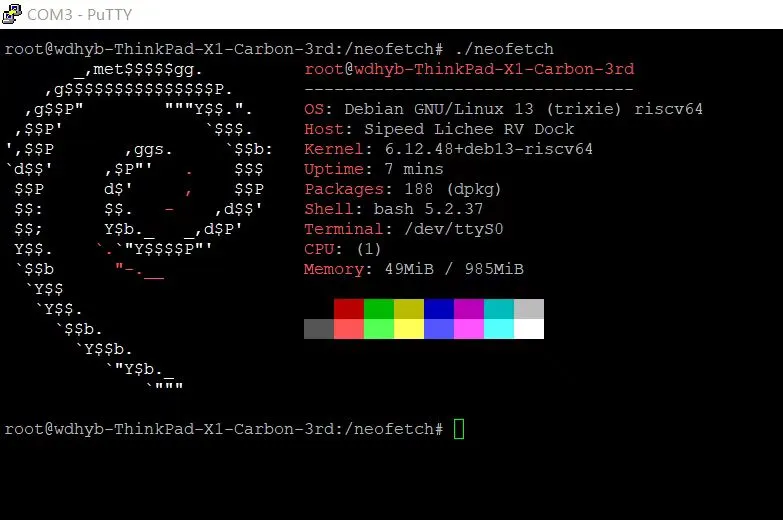

neofetch

neofetch

Basic Info

log

root@wdhyb-ThinkPad-X1-Carbon-3rd:~# uname -a
Linux wdhyb-ThinkPad-X1-Carbon-3rd 6.1.0-rc3-443875-gb466df90d48f #1 PREEMPT Sat Oct  4 20:28:29 CST 2025 riscv64 GNU/Linux
root@wdhyb-ThinkPad-X1-Carbon-3rd:~# cat /etc/os-release
PRETTY_NAME="Debian GNU/Linux 13 (trixie)"
NAME="Debian GNU/Linux"
VERSION_ID="13"
VERSION="13 (trixie)"
VERSION_CODENAME=trixie
DEBIAN_VERSION_FULL=13.1
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"
root@wdhyb-ThinkPad-X1-Carbon-3rd:~# cat /proc/cpuinfo
processor       : 0
hart            : 0
isa             : rv64imafdc
mmu             : sv39
uarch           : thead,c906
mvendorid       : 0x5b7
marchid         : 0x0
mimpid          : 0x0
