RISC-V Test MatrixBianbu @ SpacemiT K3 Pico-ITX Test Report
System Version
4.0.8
Status
GOOD
System Variant
LXQt
Last Update
2026-10-16
Bianbu SpacemiT K3 Pico-ITX Test Report
Test Environment
System Information
- System version: Bianbu 4.0.8
- Download Links: https://www.spacemit.com/community/resources-download/Images%20Collects/K3/Bianbu
- Image filename:
Bianbu-LXQt-K3-v4.0.8-20261016130312.tar.gz - Reference Installation Documents: K3 Pico-ITX User Guide, Flashing Tool User Guide
Hardware Information
- SpacemiT K3 Pico-ITX
- Power adapter
- USB-to-TTL serial debugger
- Type-C data cable (for flashing)
- Monitor and display cable
Installation Steps
Preparing the Image and Tools
Flashing the Image (Type-C)
- Shut down the board and disconnect the power, then press and hold the FDL flashing button.
- Connect power through the full-featured Type-C port or the ATX power connector, then release FDL to enter flashing mode. If the board is already powered on, hold FDL, briefly press the RST reset button, then release FDL.
- Connect the board’s DRD Type-C flashing port to the host computer using a Type-C data cable.
- Flash the image using Titan or fastboot, following the Flashing Tool User Guide and the instructions for the K3 image package. Wait for the tool to report completion.
- After flashing, exit flashing mode and restart the board normally. Check the serial boot output and desktop display.
The DRD Type-C flashing port cannot supply power to the board. Keep the board powered through another power input during flashing. The Type-C cable must support data transfer.
Logging into the System
Log into the system via the serial port.
Default Username: root
Default Password: bianbu
Expected Results
The system should boot normally and allow login through the serial port or the GUI.
Actual Results
The system booted successfully, and login through both the serial port and the GUI was successful.
Boot Log
Bianbu 4.0.8 k3 ttyS0
k3 login: root
密码：
Welcome to Bianbu 4.0.8 (GNU/Linux 6.18.3-generic riscv64)
* Documentation: https://bianbu.spacemit.com
* Support: https://ticket.spacemit.com
The programs included with the Bianbu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Bianbu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.
root@k3:~# cat /etc/os-release
PRETTY_NAME="Bianbu 4.0.8"
NAME="Bianbu"
VERSION_ID="4.0.8"
VERSION="4.0.8 (Resolute Raccoon)"
VERSION_CODENAME=resolute
ID=bianbu
ID_LIKE=debian
HOME_URL="https://bianbu.spacemit.com"
SUPPORT_URL="https://bianbu.spacemit.com"
BUG_REPORT_URL="https://ticket.spacemit.com"
PRIVACY_POLICY_URL="https://www.spacemit.com/privacy-policy"
UBUNTU_CODENAME=resolute
LOGO=bianbu-logo
root@k3:~# uname -a
Linux k3 6.18.3-generic #1.0.10.4 SMP PREEMPT_DYNAMIC Fri Oct 16 12:04:02 CST 2026 riscv64 GNU/Linux
root@k3:~# cat /proc/cpuinfo
processor : 0
hart : 0
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 1
hart : 1
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 2
hart : 2
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 3
hart : 3
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 4
hart : 4
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 5
hart : 5
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 6
hart : 6
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 7
hart : 7
model name : Spacemit(R) X100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,x100
mvendorid : 0x710
marchid : 0x8000000058000002
mimpid : 0x33d8a600
hart isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 8
hart : 8
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 9
hart : 9
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 10
hart : 10
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 11
hart : 11
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 12
hart : 12
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 13
hart : 13
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 14
hart : 14
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
processor : 15
hart : 15
model name : Spacemit(R) A100
isa : rv64imafdcvh_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
mmu : sv39
uarch : spacemit,a100
mvendorid : 0x710
marchid : 0x8000000041000002
mimpid : 0x10000000d5686200
hart isa : rv64imafdcv_zicbom_zicbop_zicboz_zicntr_zicond_zicsr_zifencei_zihintntl_zihintpause_zihpm_zimop_zaamo_zalrsc_zawrs_zfa_zfbfmin_zfh_zfhmin_zca_zcb_zcd_zcmop_zba_zbb_zbc_zbs_zkt_zvbb_zvbc_zve32f_zve32x_zve64d_zve64f_zve64x_zvfbfmin_zvfbfwma_zvfh_zvfhmin_zvkb_zvkg_zvkned_zvknha_zvknhb_zvksed_zvksh_zvkt_smaia_smstateen_ssaia_sscofpmf_ssnpm_sstc_svade_svinval_svnapot_svpbmt_sdtrig
root@k3:~# lscpu
架构： riscv64
字节序： Little Endian
CPU: 16
在线 CPU 列表： 0-15
型号名称： Spacemit(R) A100
每个核的线程数： 0
每个座的核数： 0
座： 0
Frequency boost: 禁用
型号名称： Spacemit(R) X100
每个核的线程数： 0
每个座的核数： 0
座： 0
型号名称： spacemit,a100
CPU 系列： 0x8000000041000002
型号： 0x10000000d5686200
每个核的线程数： 1
每个座的核数： 8
座： 1
CPU(s) scaling MHz: 100%
CPU 最大 MHz： 1800.0000
CPU 最小 MHz： 614.4000
型号名称： spacemit,x100
CPU 系列： 0x8000000058000002
型号： 0x33d8a600
每个核的线程数： 1
每个座的核数： 8
座： 1
CPU(s) scaling MHz: 93%
CPU 最大 MHz： 2150.0000
CPU 最小 MHz： 614.4000
Caches (sum of all):
L1d: 768 KiB (16 instances)
L1i: 768 KiB (16 instances)
L2: 10 MiB (4 instances)
Vulnerabilities:
Gather data sampling: Not affected
Ghostwrite: Not affected
Indirect target selection: Not affected
Itlb multihit: Not affected
L1tf: Not affected
Mds: Not affected
Meltdown: Not affected
Mmio stale data: Not affected
Old microcode: Not affected
Reg file data sampling: Not affected
Retbleed: Not affected
Spec rstack overflow: Not affected
Spec store bypass: Not affected
Spectre v1: Not affected
Spectre v2: Not affected
Srbds: Not affected
Tsa: Not affected
Tsx async abort: Not affected
Vmscape: Not affected
root@k3:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 119.3G 0 disk
├─sda1 8:1 0 256M 0 part
├─sda2 8:2 0 256M 0 part /boot
└─sda3 8:3 0 118.8G 0 part /
mtdblock0 31:0 0 8M 0 disk
mtdblock1 31:1 0 128K 0 disk
mtdblock2 31:2 0 512K 0 disk
mtdblock3 31:3 0 64K 0 disk
mtdblock4 31:4 0 1M 0 disk
mtdblock5 31:5 0 384K 0 disk
mtdblock6 31:6 0 5.9M 0 disk
root@k3:~# df -h
文件系统 容量 已用 可用 已用% 挂载点
tmpfs 3.2G 1.8M 3.2G 1% /run
/dev/sda3 117G 5.9G 105G 6% /
tmpfs 16G 192K 16G 1% /dev/shm
tmpfs 16G 8.0K 16G 1% /tmp
none 1.0M 0 1.0M 0% /run/credentials/systemd-journald.service
none 1.0M 0 1.0M 0% /run/credentials/systemd-resolved.service
/dev/sda2 224M 60M 146M 30% /boot
tmpfs 3.2G 92K 3.2G 1% /run/user/999
none 1.0M 0 1.0M 0% /run/credentials/serial-getty@ttyS0.service
tmpfs 3.2G 84K 3.2G 1% /run/user/0
root@k3:~#Desktop Environment

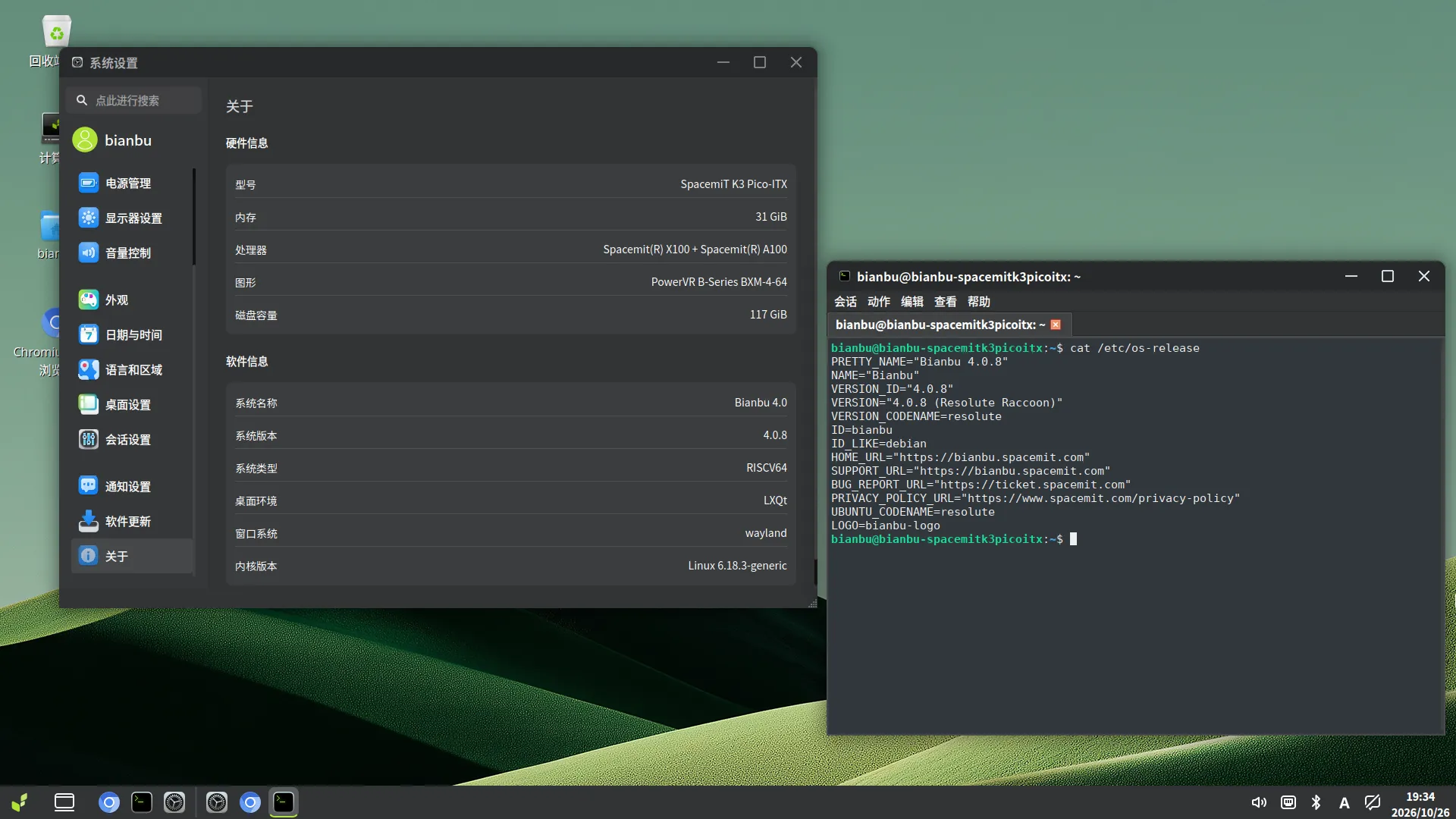

This image comes pre-installed with the LXQt desktop environment, which starts automatically as a desktop session when a monitor is connected.
Test Criteria
Successful: The actual result matches the expected result.
Failed: The actual result does not match the expected result.
Test Conclusion
Test Successful
