openKylin @ LicheePi 4A (8GB RAM) Test Report

System Version

v2.0-SP1

Status

GOOD

Last Update

2025-04-07

openKylin v2.0 SP1 LicheePi 4A 测试报告

测试环境

系统信息

硬件信息

  • Lichee Pi 4A (8G RAM + 32GB eMMC)
  • Power Adapter
  • A USB to UART Debugger

Installation Steps

Flashing the Bootloader

Extract the installation suite.

tar -xvf openKylin-Embedded-V2.0-SP1-licheepi4a-riscv64.tar.xz
cd openKylin-Embedded-V2.0-SP1-licheepi4a-riscv64/

The directory should already contain the fastboot application and the thead-image-linux.sh script file. This script contains the commands for flashing the image.

Connect the LicheePi 4A to your computer using the Type-C connector and press and hold the boot key while powering up to enter fastboot mode. Then run the script.

sudo ./thead-image-linux.sh

Logging into the System

You can see the installation guide after reboot.

Default username: openkylin Default password: openkylin

Expand partition

Expand the root partition to fill the entire eMMC.

sudo resize2fs /dev/mmcblk0p4

Expected Results

The system should boot successfully, allowing login via the onboard serial console.

Actual Results

The system booted up correctly, and login via the onboard serial console was successful.

Boot Log

openKylin 2.0 SP1 openkylin ttyS0

openkylin login: openkylin
密码:
Welcome to openKylin 2.0 SP1 (GNU/Linux 5.10.113-th1520 riscv64)

 * Support:        https://openkylin.top

The programs included with the openKylin system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

openKylin comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

load environment: QT_ACCESSIBILITY=1
load environment: PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games
openkylin@openkylin:~$ uname -a
Linux openkylin 5.10.113-th1520 #2024.07.20.13.28+d8f77de53 SMP PREEMPT Sat Jul 20 13:29:42 UTC  riscv64 riscv64 riscv64 GNU/Linux
openkylin@openkylin:~$ cat /etc/os-release
NAME="openKylin"
FULL_NAME="openKylin"
VERSION="2.0 SP1 (nile)"
VERSION_US="2.0 SP1 (nile)"
ID=openkylin
PRETTY_NAME="openKylin 2.0 SP1"
VERSION_ID="2.0"
HOME_URL="https://www.openkylin.top/"
VERSION_CODENAME=nile
PRODUCT_FEATURES=3
openkylin@openkylin:~$ lscpu
架构:            riscv64
  字节序:        Little Endian
CPU:              4
  在线 CPU 列表: 0-3
openkylin@openkylin:~$

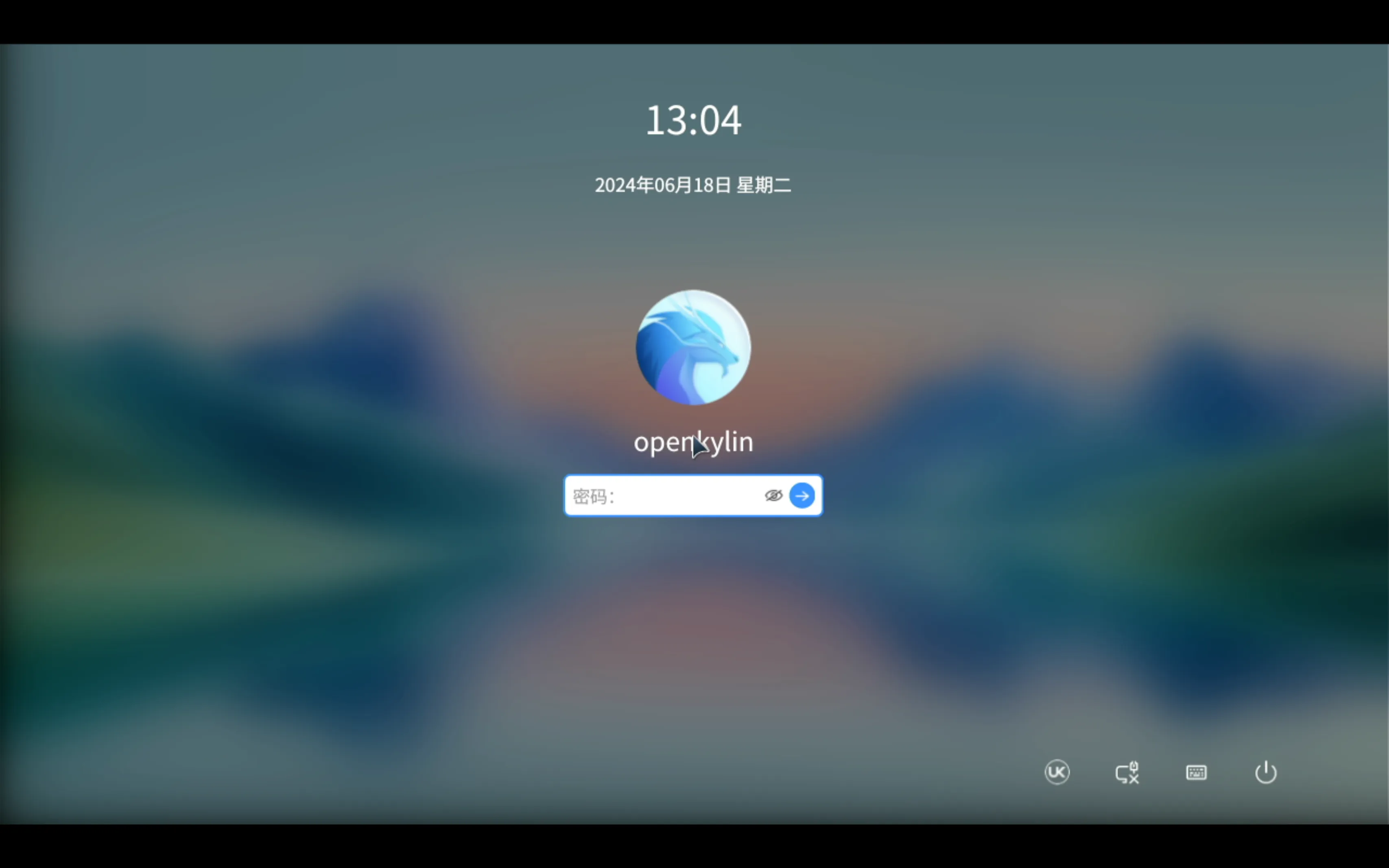

Login Screen:

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test Successful.
