openEuler @ LicheePi 4A (8GB RAM) Test Report

System Version

25.03

Status

GOOD

System Variant

Innovation

Last Update

2025-04-09

openEuler RISC-V 25.03 LPi4A Test Report

Test Environment

System Information

Hardware Information

  • Lichee Pi 4A (8G RAM + 32G eMMC)
  • USB-C Power Adapter / DC Power Supply
  • A USB-UART Debugger

Installation Steps

Download and decompress image

zstd -d openEuler-25.03-riscv64-lpi4a-base-boot.ext4.zst
zstd -d openEuler-25.03-riscv64-lpi4a-base-root.ext4.zst

Flash to onboard eMMC via fastboot

By default the USB VID/PID of LPi4A are’t in the udev rules, you might need to use sudo while using fastboot.

Hold the BOOT button, then connect the USB-C cable (to your PC on the other side) to enter USB burning mode.

In Windows using device manager, you’ll see a device named USB download gadget.

In Linux using lsusb you’ll see a device like: ID 2345:7654 T-HEAD USB download gadget.

Use the following commands to flash the image.

sudo fastboot devices
sudo fastboot flash ram u-boot-with-spl-lpi4a.bin
sudo fastboot reboot
# Wait a few seconds until the board reboots and reconnects to your PC

sudo fastboot flash uboot u-boot-with-spl-lpi4a.bin
sudo fastboot flash boot openEuler-25.03-riscv64-lpi4a-base-boot.ext4
sudo fastboot flash root openEuler-25.03-riscv64-lpi4a-base-root.ext4

Logging into the System

Logging into the system via serial console.

Default username: openeuler or root Default password: openEuler12#$

Expected Results

The system boots up successfully and allows login via the serial console.

Actual Results

The system boots up without issues, and both serial console login is successful.

Boot Log

[  OK  ] Started Network Manager.
[  OK  ] Reached target Network.
         Starting Network Manager Wait Online...
         Starting GSSAPI Proxy Daemon...
         Starting /etc/rc.d/rc.local Compatibility...
         Starting OpenSSH server daemon...
         Starting Dynamic System Tuning Daemon...
[  OK  ] Started Locale Service.
[  OK  ] Started OpenSSH server daemon.
[  OK  ] Started GSSAPI Proxy Daemon.
[  OK  ] Started /etc/rc.d/rc.local Compatibility.
         Starting Authorization Manager...
[  OK  ] Reached target NFS client services.
[  OK  ] Reached target Preparation for Remote File Systems.
[  OK  ] Reached target Remote File Systems.
         Starting Permit User Sessions...
[  OK  ] Finished Permit User Sessions.
[  OK  ] Started Deferred execution scheduler.
[  OK  ] Started Command Scheduler.
         Starting Hold until boot process finishes up...
         Starting Terminate Plymouth Boot Screen...
[   28.403427][  T865] fbcon: Taking over console

openEuler 25.03
Kernel 6.6.0-72.6.0.56.oe2503.riscv64 on an riscv64

openeuler-riscv64 login: [   38.074226][  T293] soc_dovdd18_scan: disabling
[   38.078981][  T293] soc_dvdd12_scan: disabling
[   38.083649][  T293] soc_avdd28_scan_en: disabling

openeuler-riscv64 login: openeuler
Password:

Authorized users only. All activities may be monitored and reported.


Welcome to 6.6.0-72.6.0.56.oe2503.riscv64

System information as of time:  Thu Jan  1 08:01:06 AM CST 1970

System load:    1.27
Memory used:    2.3%
Swap used:      0%
Usage On:       9%
Users online:   1
To run a command as administrator(user "root"),use "sudo <command>".
[openeuler@openeuler-riscv64 ~]$ uname -a
Linux openeuler-riscv64 6.6.0-72.6.0.56.oe2503.riscv64 #1 SMP PREEMPT Wed Mar 26 18:19:48 CST 2025 riscv64 riscv64 riscv64 GNU/Linux
[root@openeuler-riscv64 ~]# cat /etc/os-release
NAME="openEuler"
VERSION="25.03"
ID="openEuler"
VERSION_ID="25.03"
PRETTY_NAME="openEuler 25.03"
ANSI_COLOR="0;31"

asciicast

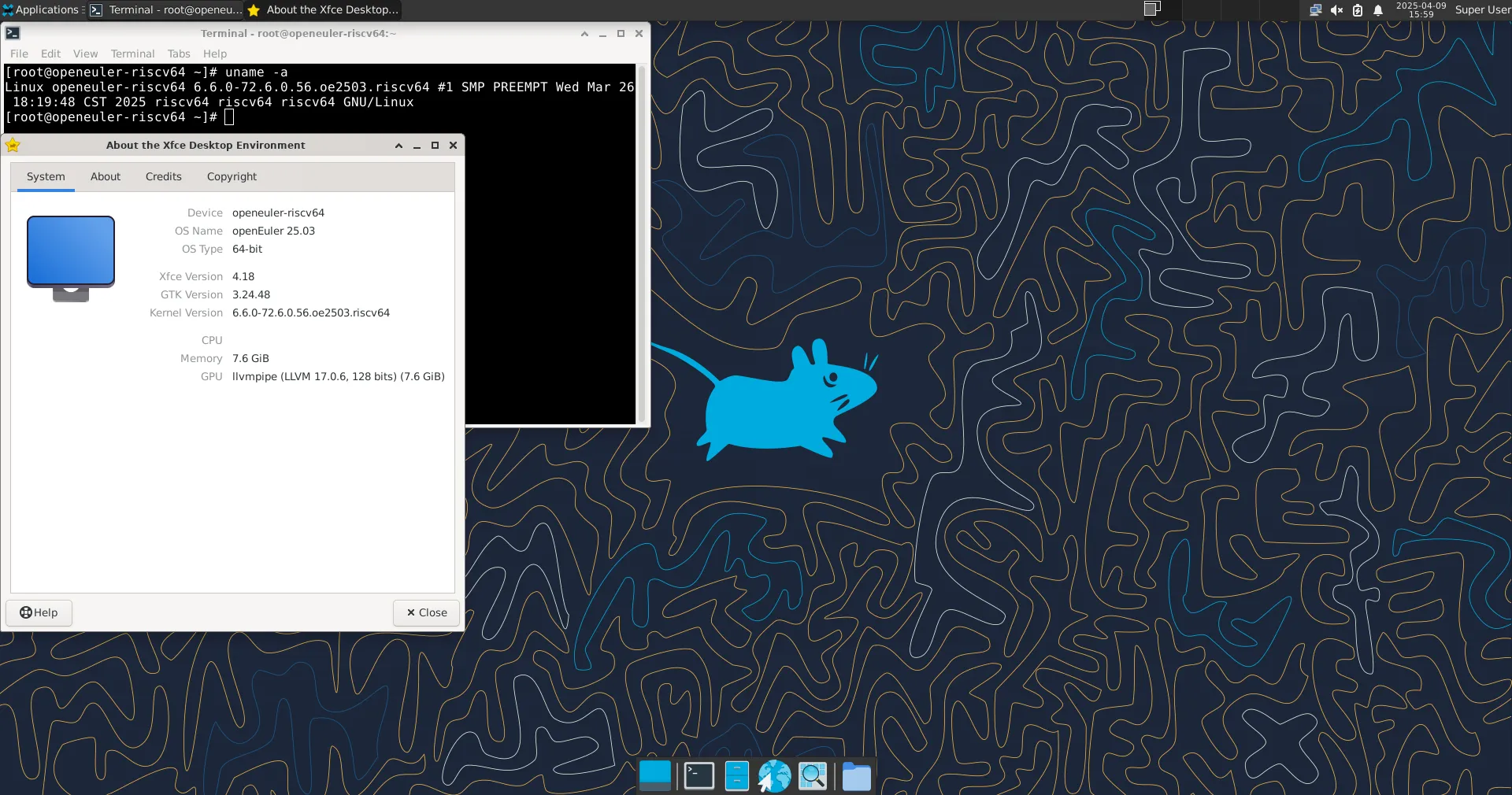

Install Desktop Environment

We’ll take the example of Xfce installation here:

sudo dnf update
sudo dnf install dejavu-fonts liberation-fonts gnu-*-fonts google-*-fonts
sudo dnf install xorg-*
sudo dnf install xfwm4 xfdesktop xfce4-* xfce4-*-plugin network-manager-applet *fonts
sudo dnf install lightdm lightdm-gtk
echo 'user-session=xfce' >> /etc/lightdm/lightdm.conf.d/60-lightdm-gtk-greeter.conf

Enable display manager and set default GUI login method

sudo systemctl start lightdm

sudo systemctl enable lightdm
sudo systemctl set-default graphical.target

xfce

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
