irradium LicheePi 4A Test Report

Test Environment

Operating System Information

OS Version: irradium 3.8
Download Links:
Installation Reference: https://dl.irradium.org/irradium/images/lichee_pi_4a/README.TXT

Hardware Information

Lichee Pi 4A (16GB RAM + 128GB eMMC)
Power adapter
USB to UART debugger
Three DuPont wires
MicroSD card

Installation Steps

Download and Extract Image & u-boot

Download the desired image and u-boot from the official download server. Extract files:

zstd -d irradium-3.8-riscv64-core-lichee_pi_4a-6.6.90-build-20250510.img.zst
zstd -d irradium-3.8-riscv64-xfce-lichee_pi_4a-6.6.90-build-20250510.img.zst
tar -xvf boot-20250510.tar.xz

Result:

❯ tree .
.
├── boot
│   ├── fw_dynamic.bin
│   └── u-boot-with-spl.bin
├── boot-20250510.tar.xz
├── irradium-3.8-riscv64-core-lichee_pi_4a-6.6.90-build-20250510.img
├── irradium-3.8-riscv64-core-lichee_pi_4a-6.6.90-build-20250510.img.zst
├── irradium-3.8-riscv64-xfce-lichee_pi_4a-6.6.90-build-20250510.img
└── irradium-3.8-riscv64-xfce-lichee_pi_4a-6.6.90-build-20250510.img.zst

2 directories, 7 files

Flashing u-boot using fastboot

Connect LPi4A via USB, hold the BOOT button and press reset (next to Type-C port) to enter USB burning mode.

sudo ./fastboot flash ram ./images/boot/u-boot-with-spl.bin
sudo ./fastboot reboot
# Wait a few seconds for the board to reboot.
sudo ./fastboot flash uboot ./images/boot/u-boot-with-spl.bin

Log:

❯ sudo ./fastboot flash ram ./images/boot/u-boot-with-spl.bin
Sending 'ram' (1009 KB)                            OKAY [  0.267s]
Writing 'ram'                                      OKAY [  0.002s]
Finished. Total time: 0.278s

❯ sudo ./fastboot reboot
Rebooting                                          OKAY [  0.001s]
Finished. Total time: 0.553s

❯ sudo ./fastboot flash uboot ./images/boot/u-boot-with-spl.bin
Sending 'uboot' (1009 KB)                          OKAY [  0.050s]
Writing 'uboot'                                    OKAY [  0.021s]
Finished. Total time: 0.104s

Writing System Image to MicroSD Card

The author used the dd command:

sudo dd if=images/irradium-3.8-riscv64-core-lichee_pi_4a-6.6.90-build-20250510.img of=/dev/mmcblk0 bs=1M

Log:

输入了 5819+0 块记录
输出了 5819+0 块记录
6101663744 字节 (6.1 GB, 5.7 GiB) 已复制，204.449 s，29.8 MB/s

Logging into the System

Insert the MicroSD card into LPi4A and reboot. Use a serial connection to log in; the author used minicom.

minicom -D /dev/ttyACM0 -c on

Default username: root Password needs to be set after boot.

Boot logs are in bootLog.txt in the same folder.

Expected Results

System boots normally and allows login via onboard serial port. If network is connected, SSH login should also work.

Actual Results

System booted successfully and allowed login via serial.

Boot Log

lichee-pi-4a login: root
Password:
Last login: Thu Jan  1 00:00:26 UTC 1970 on ttyS0
 _                   _  _
|_| ___  ___  ___  _| ||_| _ _  _____
| ||  _||  _|| .'|| . || || | ||     |
|_||_|  |_|  |__,||___||_||___||_|_|_|
 _  _       _                     _    ___
| ||_| ___ | |_  ___  ___    ___ |_|  | | | ___
| || ||  _||   || -_|| -_|  | . || |  |_  || .'|
|_||_||___||_|_||___||___|  |  _||_|    |_||__,|
                            |_|

# uname -a
Linux lichee-pi-4a 6.6.90 #1 SMP PREEMPT Sat May 10 16:34:28 EEST 2025 riscv64 GNU/Linux
# cat /proc/cpuinfo
processor       : 0
hart            : 0
isa             : rv64imafdc_zicntr_zicsr_zifencei_zihpm_xtheadvector
mmu             : sv39
uarch           : thead,c910
mvendorid       : 0x5b7
marchid         : 0x0
mimpid          : 0x0

processor       : 1
hart            : 1
isa             : rv64imafdc_zicntr_zicsr_zifencei_zihpm_xtheadvector
mmu             : sv39
uarch           : thead,c910
mvendorid       : 0x5b7
marchid         : 0x0
mimpid          : 0x0

processor       : 2
hart            : 2
isa             : rv64imafdc_zicntr_zicsr_zifencei_zihpm_xtheadvector
mmu             : sv39
uarch           : thead,c910
mvendorid       : 0x5b7
marchid         : 0x0
mimpid          : 0x0

processor       : 3
hart            : 3
isa             : rv64imafdc_zicntr_zicsr_zifencei_zihpm_xtheadvector
mmu             : sv39
uarch           : thead,c910
mvendorid       : 0x5b7
marchid         : 0x0
mimpid          : 0x0

# cat /proc/version
Linux version 6.6.90 (root@firefly-rk3399) (riscv64-unknown-linux-gnu-gcc (g2ee5e430018) 12.2.0, G5
# cat /etc/os-release
NAME=irradium
VERSION="3.8"
ID=irradium
PRETTY_NAME="irradium"
HOME_URL="https://irradium.org/"
BUG_REPORT_URL="https://irradium.org/bugs/"
#

Desktop Environment

The official release includes an XFCE desktop image. Simply write it to the MicroSD card to use it.

sudo dd if=images/irradium-3.8-riscv64-xfce-lichee_pi_4a-6.6.90-build-20250510.img of=/dev/mmcblk0 bs=1M

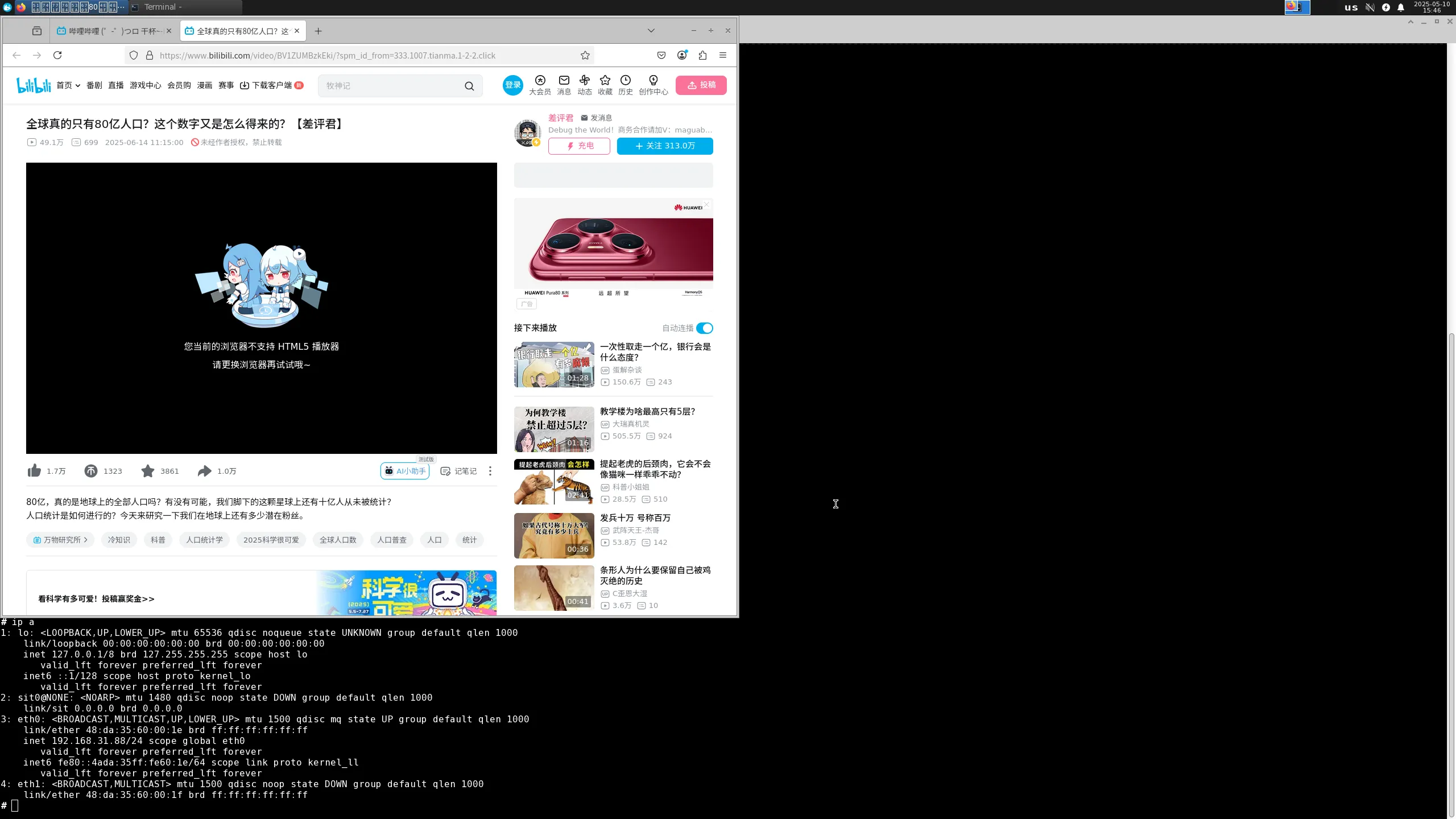

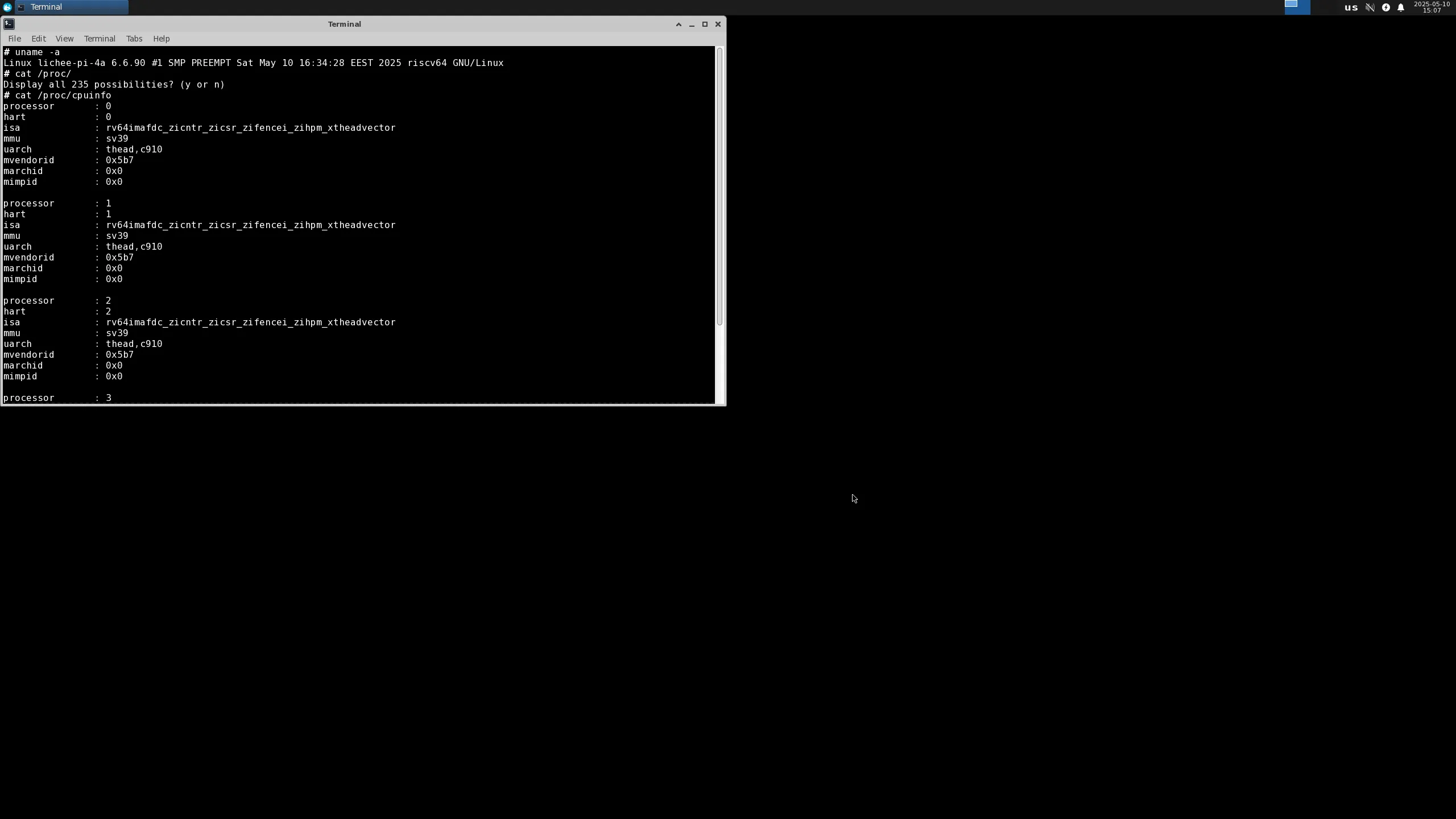

Screenshots of XFCE desktop:

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
