openHarmony @ BananaPi BPI-F3 Test Report

System Version

5.0.0.71

Status

GOOD

Last Update

2025-03-28

OpenHarmony v5.0.0.71 Banana Pi BPI-F3 Test Report

Test Environment

System Information

Hardware Information

  • Banana Pi BPI-F3
  • Power Adapter
  • USB to UART Debugger
  • USB Type-C Cable

Installation Steps

Setup development environment

Currently OpenHarmony’s SDK only supports Ubuntu focal and above. If you are using a different OS, a docker image may be used.

Install the required packages:

sudo apt-get update

sudo apt-get install binutils git git-lfs gnupg gperf build-essential zip curl zlib1g-dev gcc-multilib lib32ncurses5-dev x11proto-core-dev libx11-dev lib32z1-dev libxml2-utils xsltproc unzip m4 bc gnutls-bin python3-pip ruby ccache libgl1-mesa-dev g++-multilib libc6-dev-i386 flex bison default-jdk openssl libelf-dev lz4 genext2fs libncurses5 libssl-dev u-boot-tools dosfstools mtools python2 cpio nodejs npm android-tools-adb android-tools-fastboot android-sdk-ext4-utils android-sdk-libsparse-utils mtd-utils scons

Download the source code

The source code is maintained in gitee, so you need a gitee account and a ssh key pair to use the repo.

After setting up your gitee account, clone the repo:

mkdir ohos5
cd ohos5
repo init -u git@gitee.com:riscv-sig/manifest.git -b riscv/OpenHarmony-v5.0.0-Release --no-repo-verify --repo-url=https://gerrit-googlesource.lug.ustc.edu.cn/git-repo
repo sync -c
repo forall -c 'git lfs pull'
repo start OpenHarmony-v5.0.0-Release --all

Install prebuilt toolchains

build/prebuilts_download.sh

Build the source code

Though in official list, bpi-f3 is not supported, but it can use the save configuration as deb1, which has the save device tree.

Suggested using ccache to speed up the build process. The entire build process may take a few hours.

./build.sh --product-name deb1 --ccache

Note: Using an SD card instead of eMMC

If you want to use a microSD card instead of eMMC, you need to modify some configurations:

cd device/board/spacemit/deb1
grep -rl 'd4281000' ./ | xargs sed -i 's/d4281000/d4280000/g'
cd -

Note: Using MIPI DSI display instead of HDMI

The default display is HDMI, if you want to use MIPI DSI display, you need to modify device tree:

diff --git a/kernel/linux/spacemit_kernel-6.6/arch/riscv/boot/dts/spacemit/k1-x_deb1.dts b/kernel/linux/spacemit_kernel-6.6/arch/riscv/boot/dts/spacemit/k1-x_deb1.dts.new
index 721d351..f34775c 100644
--- a/kernel/linux/spacemit_kernel-6.6/arch/riscv/boot/dts/spacemit/k1-x_deb1.dts
+++ b/kernel/linux/spacemit_kernel-6.6/arch/riscv/boot/dts/spacemit/k1-x_deb1.dts
@@ -208,11 +208,11 @@
        spacemit-dpu-escclk = <76800000>;
        dsi_1v2-supply = <&ldo_5>;
        vin-supply-names = "dsi_1v2";
-       status = "disabled";
+       status = "okay";
 };

 &dsi2 {
-       status = "disabled";
+       status = "okay";

        panel2: panel2@0 {
                status = "ok";
@@ -228,18 +228,18 @@
 };

 &lcds {
-       status = "disabled";
+       status = "okay";
 };

 &dpu_online2_hdmi {
        memory-region = <&dpu_resv>;
-       status = "okay";
+       status = "disabled";
 };

 &hdmi{
        pinctrl-names = "default";
        pinctrl-0 = <&pinctrl_hdmi_0>;
-       status = "okay";
+       status = "disabled";
 };

 &i2c0 {

Generate the image

./build/gen_zip.sh deb1

The generated image will be out/deb1/packages/phone/images/openharmony-spacemit-deb1.zip.

Flashing the Image

To flash the image, you need to use the TITANTOOLS provided by Spacemit.

It is a GUI tool, comes as an AppImage, so you need to make it executable and run it.

chmod +x titantools_for_linux-2.0.1-Rc.AppImage
./titantools_for_linux-2.0.1-Rc.AppImage

Flashing the Image (Fastboot)

It is possible to flash the image using only fastboot, with the following commands:

sudo fastboot stage factory/FSBL.bin
sudo fastboot continue
sudo fastboot stage u-boot.itb
sudo fastboot continue
sudo fastboot flash gpt partition_universal.json
sudo fastboot flash bootinfo factory/bootinfo_sd.bin
sudo fastboot flash fsbl factory/FSBL.bin
sudo fastboot flash env env.bin
sudo fastboot flash opensbi fw_dynamic.itb
sudo fastboot flash uboot u-boot.itb
sudo fastboot flash boot boot.img
sudo fastboot flash ramdisk ramdisk.img
sudo fastboot flash updater updater.img
sudo fastboot flash sys_prod sys_prod.img
sudo fastboot flash chip_prod chip_prod.img
sudo fastboot flash system system.img
sudo fastboot flash vendor vendor.img
sudo fastboot flash userdata userdata.img

Logging into the System

Logging into the system via the serial port or HDMI display. Mouse and keyboard are supported.

Expected Results

The system should boot normally and allow login via the onboard serial port and HDMI display.

Actual Results

The system booted successfully and login via the onboard serial port and HDMI display was also successful.

Boot Log

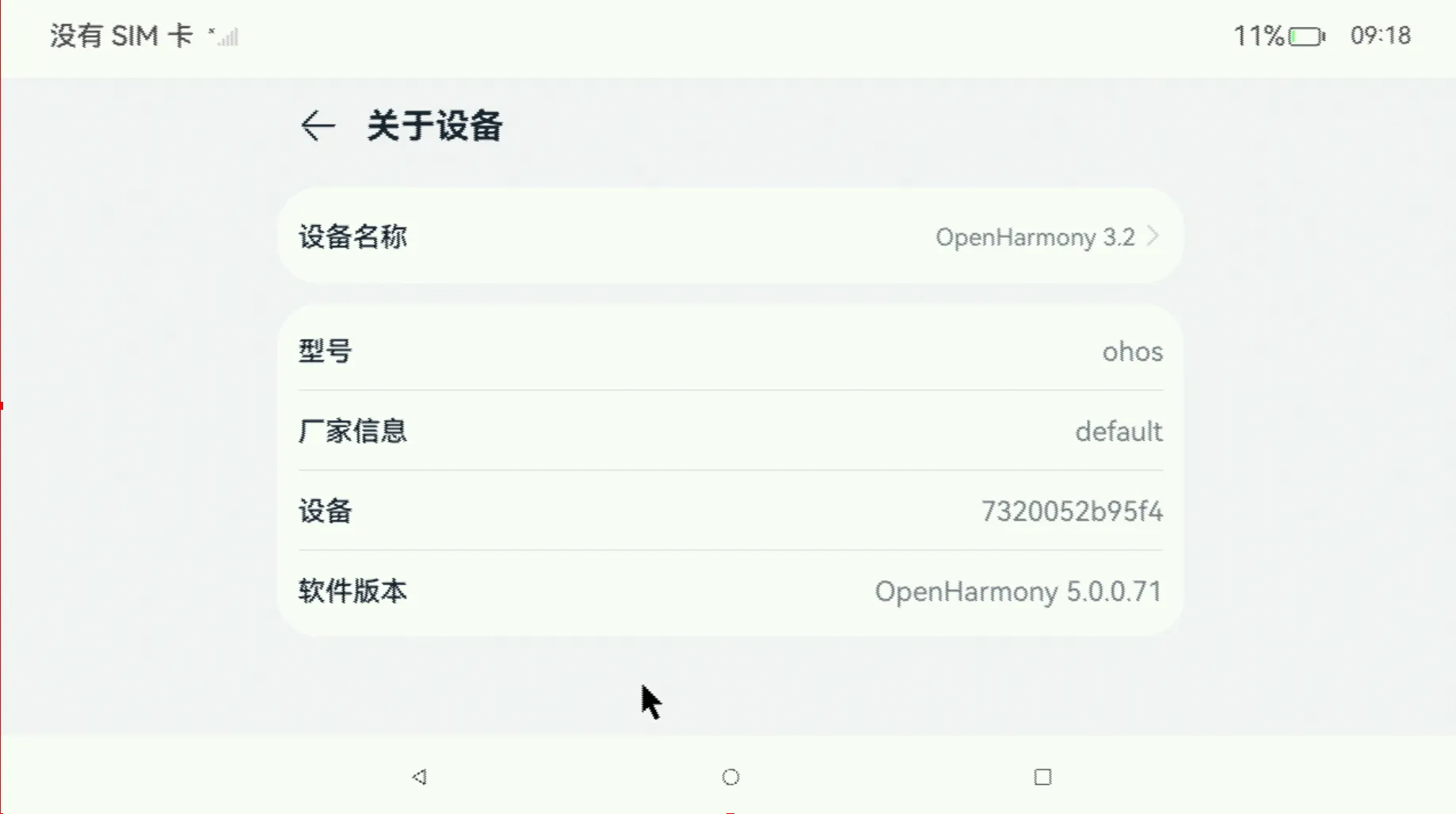

sysinfo

Screen recording (from flashing image to login): asciicast

# begetctl dump api
Begin dump syspara
=======================
DeviceType:default
Manufacture:default
Brand:default
MarketName:OpenHarmony 3.2
ProductSeries:default
ProductModel:ohos
SoftwareModel:default
HardwareModel:default
Serial:7320052b95f4
OSFullName:OpenHarmony-5.0.0.71
DisplayVersion:OpenHarmony 5.0.0.71
BootloaderVersion:bootloader
GetSecurityPatchTag:2024/09/01
AbiList:riscv64
IncrementalVersion:default
VersionId:default/default/default/default/OpenHarmony-5.0.0.71/ohos/default/12/default/default
BuildType:default
BuildUser:default
BuildHost:default
BuildTime:default
BuildRootHash:default
GetOsReleaseType:Release
GetHardwareProfile:default
FirstApiVersion:1
GetSerial:7320052b95f4
acl serial:
GetDevUdid:6A9BC9718275333E50F82F6866646BEEFDF5223893CE84B633A7C268BA7EB1A2
Acl devUdid:
Version:5.0.0.71
GetSdkApiVersion:12
GetSystemCommitId:896
=======================
End dump syspara
# uname -a
Linux localhost 6.6.36 #1 SMP PREEMPT Fri Mar 28 01:16:56 CST 2025 riscv64
# cat /proc/cpuinfo
processor       : 0
hart            : 0
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 1
hart            : 1
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 2
hart            : 2
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 3
hart            : 3
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 4
hart            : 4
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 5
hart            : 5
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 6
hart            : 6
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 7
hart            : 7
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

Notice

The default loader comes with the image is ld-musl-riscv64.so.1, you need to get your own glibc loader to run glibc based applications.
