Deepin preview BPI-F3 test report

Test Environment

System Information

System Version: Deepin preview 20240913
Download Link: https://ci.deepin.com/repo/deepin/deepin-ports/cdimage/20240913/riscv64/deepin-23-beige-preview-riscv64-k1-20240913-124401.tar.xz
Reference Installation Document: https://cdimage.deepin.com/RISC-V/preview-20240517-riscv64/README.md
Desktop Environment: DDE

Hardware Information

BPI-F3 (4G RAM + 16GB eMMC)
Power adapter
USB to UART debugger

Installation Steps

Flashing Bootloader

u-boot is not present the official zip file, so grab one from bianbu: https://archive.spacemit.com/image/k1/version/bianbu/

Decompress the installation kit and flash both u-boot and boot:

unzip https://archive.spacemit.com/image/k1/version/bianbu/v2.0.4/bianbu-24.04-minimal-k1-v2.0.4-release-20241205234138.zip
tar -xvf ./deepin-23-beige-preview-riscv64-k1-20240913-124401.tar.xz
sudo fastboot flash gpt partition_universal.json
sudo fastboot flash bootinfo factory/bootinfo_emmc.bin
sudo fastboot flash fsbl factory/FSBL.bin
sudo fastboot flash env env.bin
sudo fastboot flash opensbi fw_dynamic.itb
sudo fastboot flash uboot u-boot.itb
sudo fastboot flash boot deepin-k1-riscv64-stable-desktop-installer.boot.ext4

Flashing the image

Flash the root partition into eMMC:

sudo fastboot flash root deepin-k1-riscv64-stable-desktop-installer.root.ext4

Logging into the System

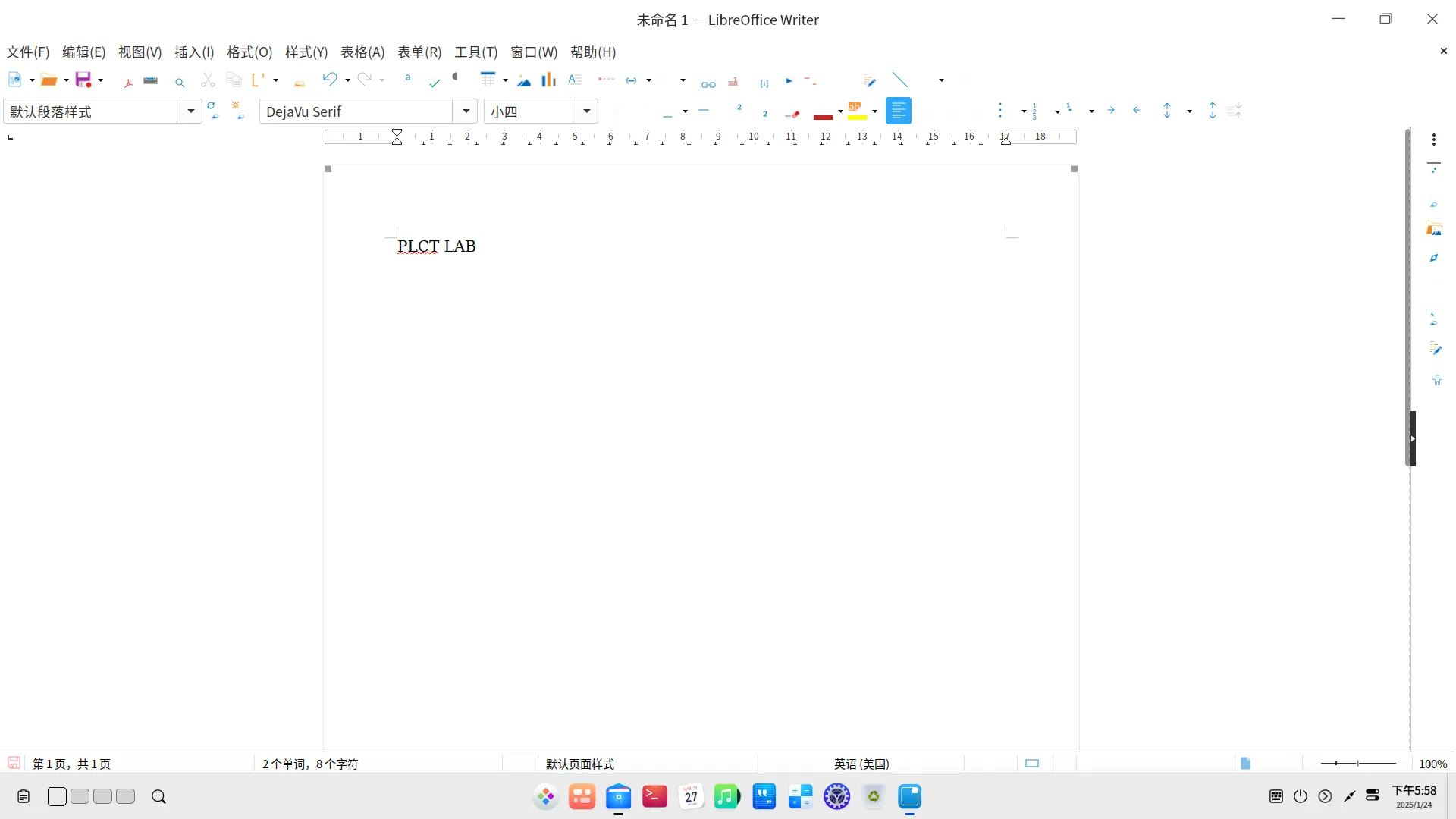

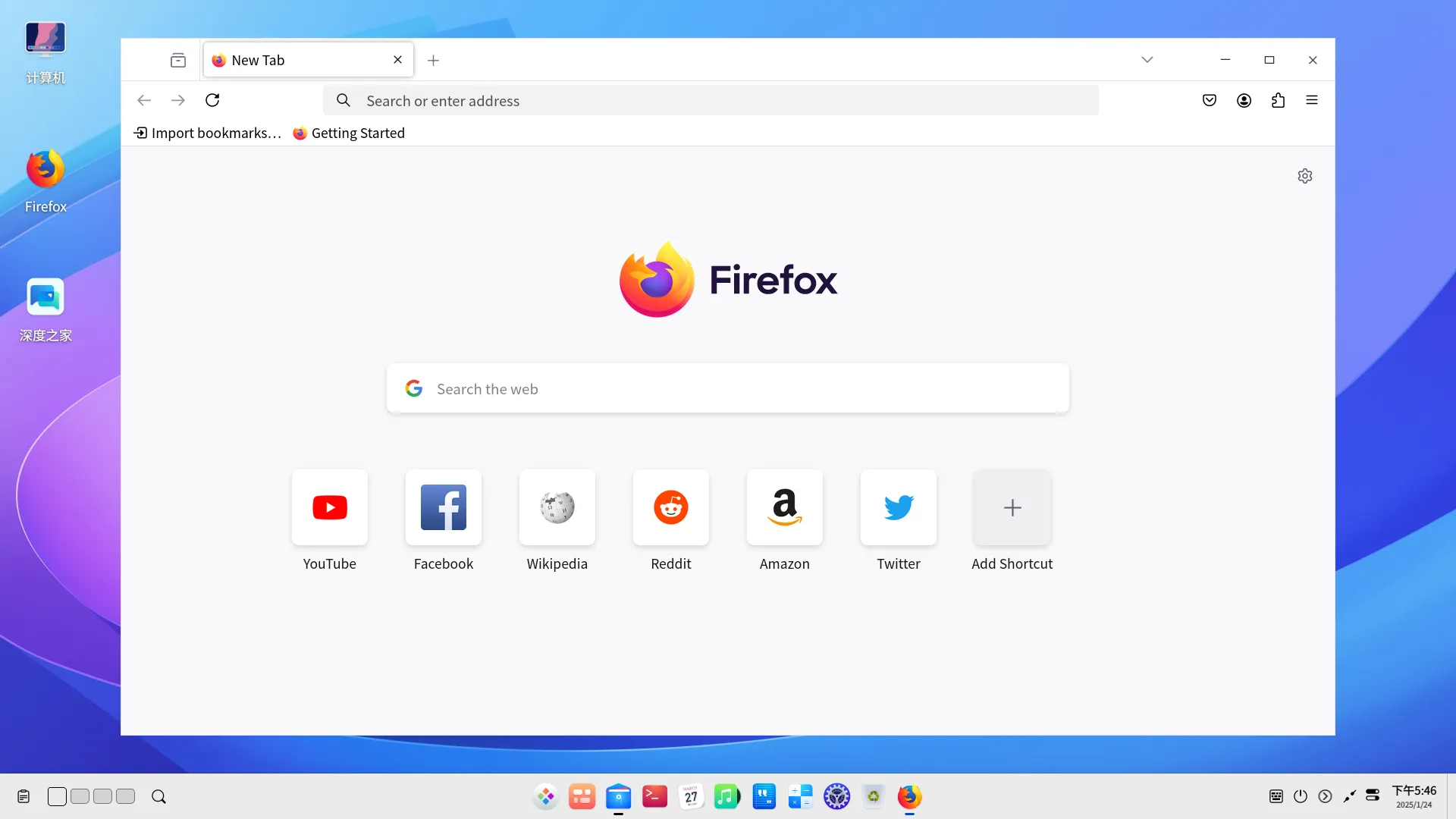

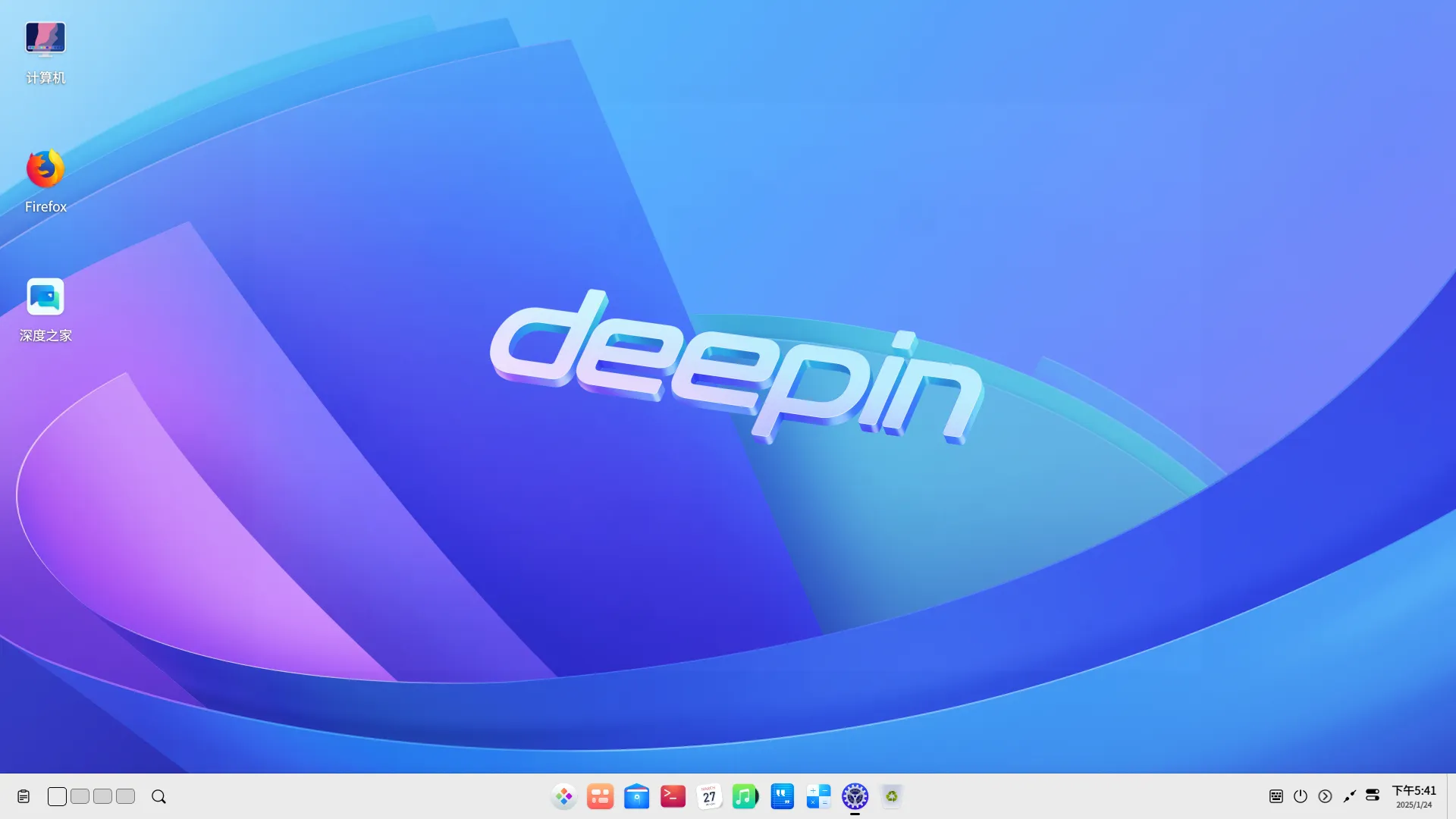

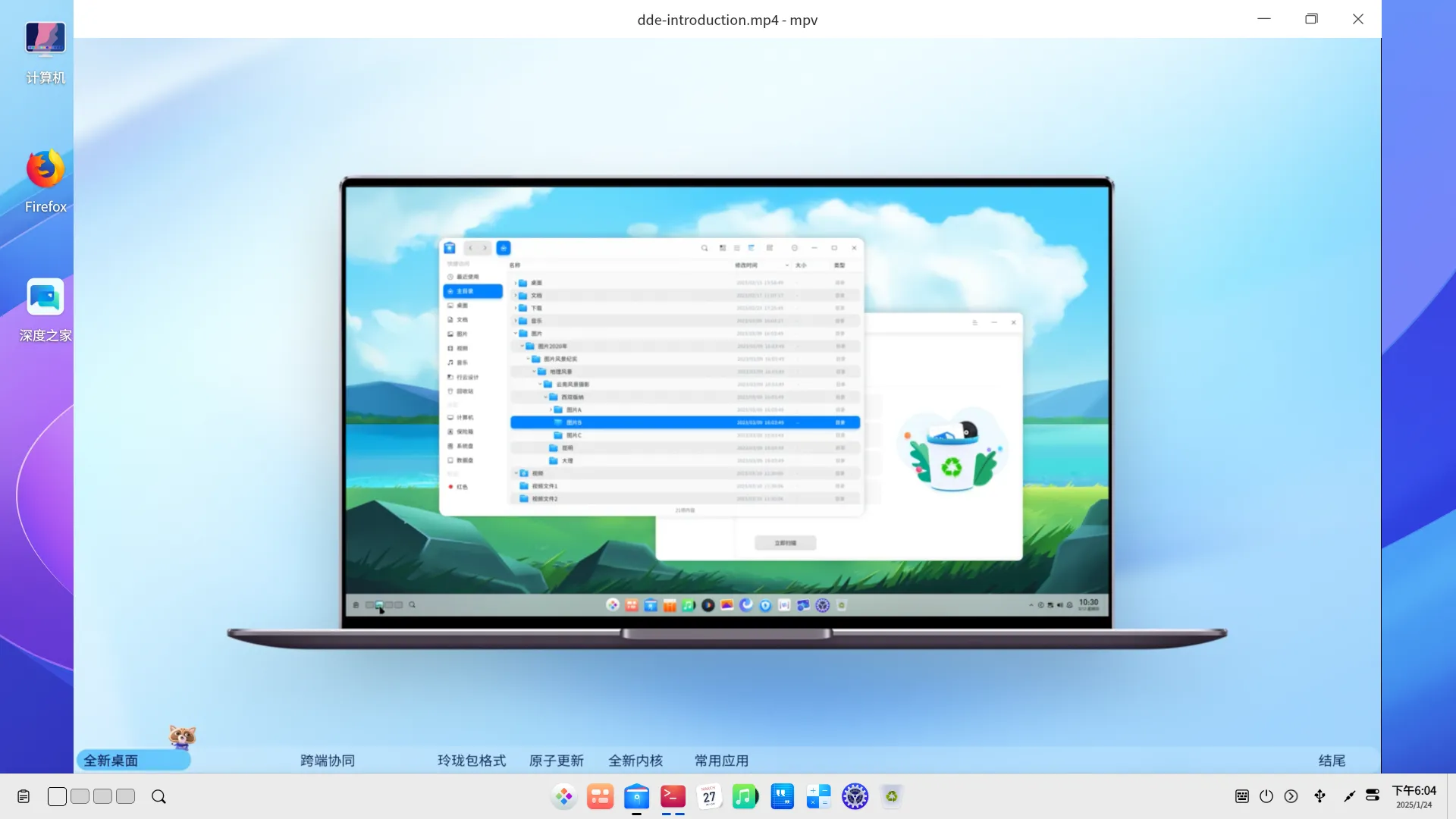

GUI is available after reboot.

Default Username: root Default Password: deepin

A normal user is required for graphical login.

Expected Results

The system should boot up normally and allow login through the onboard serial port or GUI.

Actual Results

The system booted up normally and login through both the onboard serial port and GUI are successful.

Boot Log

deepin-PC login: root
Password:
Verification successful
Linux deepin-PC 6.6.36 #2.0~rc4.1+20240831010724 SMP PREEMPT Fri Aug 30 19:17:53 UTC 20 riscv64
Welcome to Deepin 23 GNU/Linux

    * Homepage:https://www.deepin.org/

    * Bugreport:https://bbs.deepin.org/


root@deepin-PC:~# uname -a
Linux deepin-PC 6.6.36 #2.0~rc4.1+20240831010724 SMP PREEMPT Fri Aug 30 19:17:53 UTC 20 riscv64 GNU/Linux
root@deepin-PC:~# cat /etc/
Display all 230 possibilities? (y or n)
root@deepin-PC:~# cat /etc/os
os-release  ostree/     os-version
root@deepin-PC:~# cat /etc/os-release
PRETTY_NAME="Deepin 23"
NAME="Deepin"
VERSION_ID="23"
VERSION="23"
ID=deepin
HOME_URL="https://www.deepin.org/"
BUG_REPORT_URL="https://bbs.deepin.org"
VERSION_CODENAME=beige
root@deepin-PC:~# cat /proc/cpuinfo
processor       : 0
hart            : 0
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 1
hart            : 1
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 2
hart            : 2
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 3
hart            : 3
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 4
hart            : 4
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 5
hart            : 5
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 6
hart            : 6
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200

processor       : 7
hart            : 7
model name      : Spacemit(R) X60
isa             : rv64imafdcv_zicbom_zicboz_zicntr_zicond_zicsr_zifencei_zihintpause_zihpm_zfh_zfhmin_zca_zcd_zba_zbb_zbc_zbs_zkt_zve32f_zve32x_zve64d_zve64f_zve64x_zvfh_zvfhmin_zvkt_sscofpmf_sstc_svinval_svnapot_svpbmt
mmu             : sv39
mvendorid       : 0x710
marchid         : 0x8000000058000001
mimpid          : 0x1000000049772200
